heatmap

typhon.plots.heatmap(x, y, bins=20, bisectrix=True, ax=None, **kwargs)[source]

Plot a heatmap of two data arrays.

This function is a simple wrapper for plt.hist2d().

Parameters
  • x (np.ndarray) – x data.

  • y (np.ndarray) – y data.

  • bins (int | [int, int] | array_like | [array, array]) –

    The bin specification:

    • If int, the number of bins for the two dimensions (nx=ny=bins).

    • If [int, int], the number of bins in each dimension (nx, ny = bins).

    • If array_like, the bin edges for the two dimensions (x_edges=y_edges=bins).

    • If [array, array], the bin edges in each dimension (x_edges, y_edges = bins).

    The default value is 20.

  • bisectrix (bool) – Toggle drawing of the bisectrix.

  • ax (AxesSubplot, optional) – Axes to plot in.

  • **kwargs – Additional keyword arguments passed to matplotlib.pyplot.hist2d().

Returns

AxesImage.

Examples:

import numpy as np
import matplotlib.pyplot as plt
from typhon.plots import heatmap


x = np.random.randn(500)
y = x + np.random.randn(x.size)

fig, ax = plt.subplots()
heatmap(x, y, ax=ax)

plt.show()

(Source code, png, hires.png, pdf)

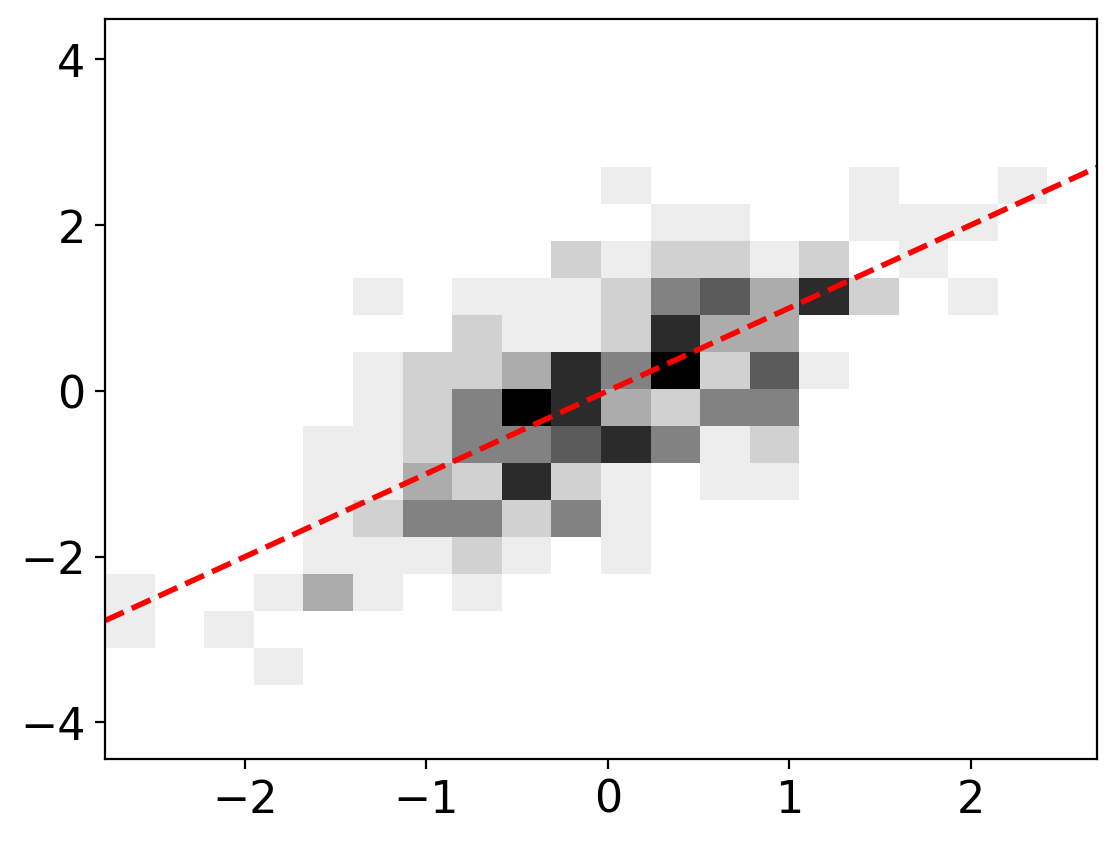

../_images/typhon-plots-heatmap-1.png
